Force Feed Lubrication System

Force Feed Lubrication System. Typical components of a force feed system are: Enhanced force feed lubrication system.

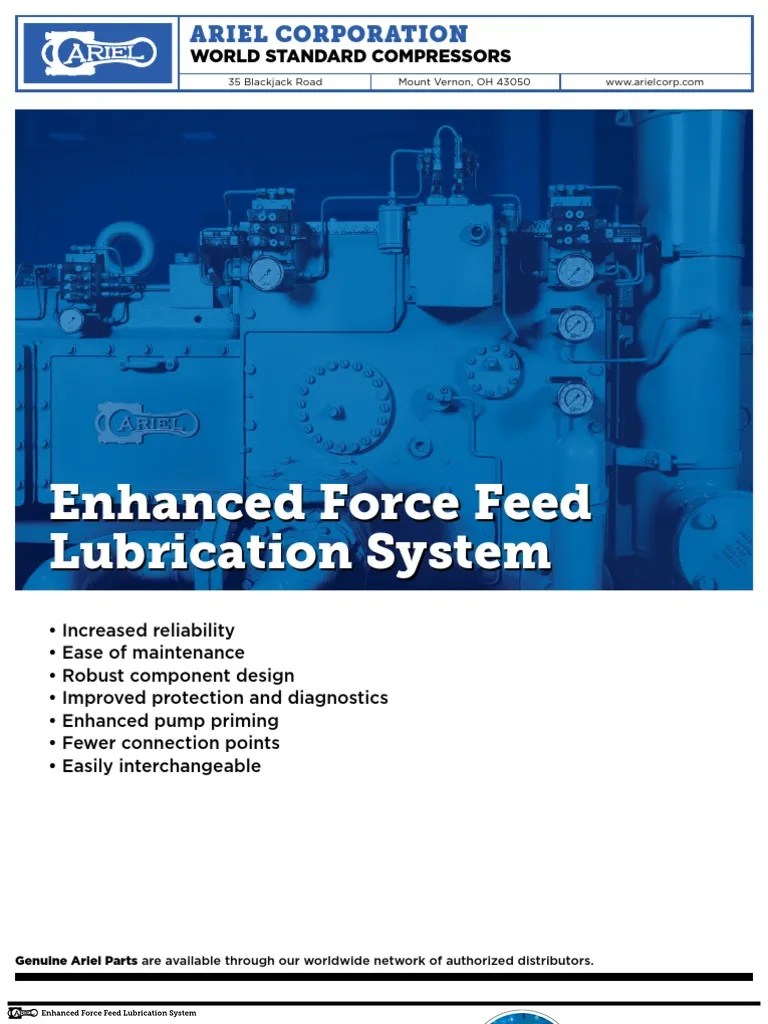

ariel enhanced force feed lubrication system [PDF Document] from documents.pub

Mechanical system of lubricating internal combustion engines in which a pump forces oil into the engine bearings. Improvements will be provided on new units and available as aftermarket upgrades beginning january 2012. Forced feed or pressure lubrication system.

Source: kids.britannica.com

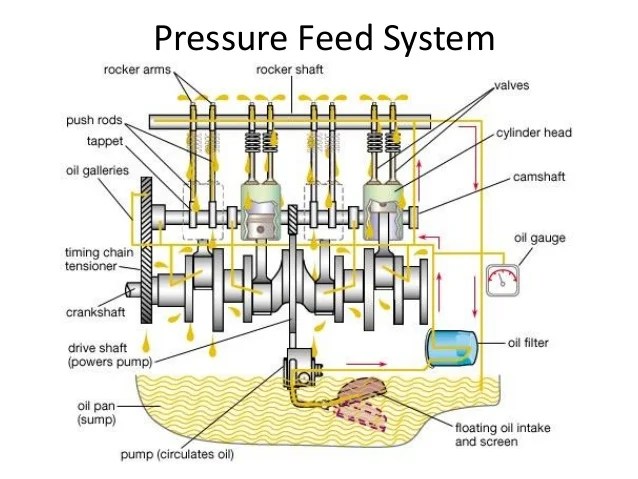

Pressure feed lubrication system of ic engine Analyze the symptoms using your understanding of system operation.

Source: www.scribd.com

Using the same field proven design of the knox western model tp200 compressor, knox western has now developed two units availabe with 3.0 or 4.5 stroke crankshafts, for direct couple. Analyze the symptoms using your understanding of system operation.

Source: constructionmanuals.tpub.com

Mighty lube systematic lubrication, inc. Oil trapsimproved design offers better performance and quicker priming.

Source: ecoursesonline.iasri.res.in

As splash system has limitations to lubricate all the critical components in an engine, force feed system is used to generate additional pressure to ensure oil reaching to all essential and desired components for lubrication purposes. These pumps are operated by individual cams on the drive shaft.

Source: i99.to

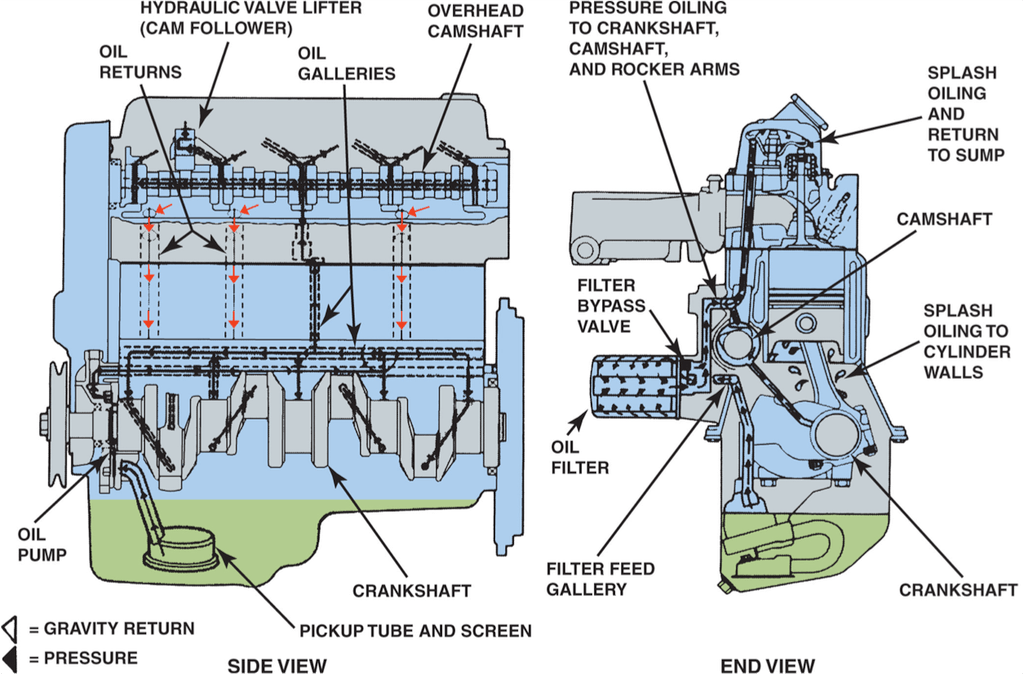

Usually the oil first enters the main gallery, which may be a pipe or a channel in the crankcase casting. Pressure feed lubrication system of ic engine

Source: armyordnance.tpub.com

Oil supply tank or sump oil pump oil filter oil galleries feeding critical engine components oil cooler pressure and temperature. 4 throw configuration frame.the tp can be splash lubricated or force feed lubricated.

Source: blog.softinway.com

Increased reliability and ease of maintenanceintroducing the improved high pressure force feed lubrication system from ariel. Fcylinder lubrication logic chart (example).

Source: www.slideshare.net

The pressure feed system is that in which oil is drawn in from the sump and force to all the main bearings of the crankshaft through distribution channels. It is extremely critical in force feed lubrication systems for the compressor and power cylinders to have a continuous flow of oil.

Source: documents.pub

4 throw configuration frame.the tp can be splash lubricated or force feed lubricated. A system of lubrication in which the lubricant is supplied to the bearing surface under pressure.

Source: www.thinglink.com

Enhanced force feed lubrication system. • • • • • • • pumps reservoir.

Source: armyordnance.tpub.com

Generally, a gear type pump driven by the camshaft generates the pressure. To troubleshoot an engine lubricating system, begin by gathering information on the problem.

Source: www.slideserve.com

Using the same field proven design of the knox western model tp200 compressor, knox western has now developed two units availabe with 3.0 or 4.5 stroke crankshafts, for direct couple. Oil is forced by the oil pump from the crankcase to the main bearings and the camshaft bearings.

We Sincerely Look Forward To Your Visit.

A system of lubrication in which the lubricant is supplied to the bearing surface under pressure. You should arrive at a logical deduction about the cause of the problem. Analyze the symptoms using your understanding of system operation.

How A Film Of Lubricant Between A Bearing And A Shaft Looks Through A Microscope.

The lubricant to be used will be discussed in chapter viii — lubricants and greases. Increased reliability and ease of maintenanceintroducing the improved high pressure force feed lubrication system from ariel. It is extremely critical in force feed lubrication systems for the compressor and power cylinders to have a continuous flow of oil.

Improvements Will Be Provided On New Units And Available As Aftermarket Upgrades Beginning January 2012.

The pressure relief valve will also be fitted near the delivery point of the pump which opens when the pressure in the system attains a predetermined value. Force feed lubrication systems are designed to accurately deliver, monitor, and protect oil delivery to pumps, compressors, or any other critical equipment. Usually the oil first enters the main gallery, which may be a pipe or a channel in the crankcase casting.

Specifications Of Lubricators Include 120 Vac Power Supply & 5.5 Gal.

26.3 force feed lubrication system. Force_feed_lubrication lubricant pressure bearing surface lubrication system bearing_surface. Typical components of a force feed system are:

Pressure Feed Lubrication System Of Ic Engine

Generally, a gear type pump driven by the camshaft generates the pressure. • • • • • • • pumps reservoir. Oil supply tank or sump oil pump oil filter oil galleries feeding critical engine components oil cooler pressure and temperature.
